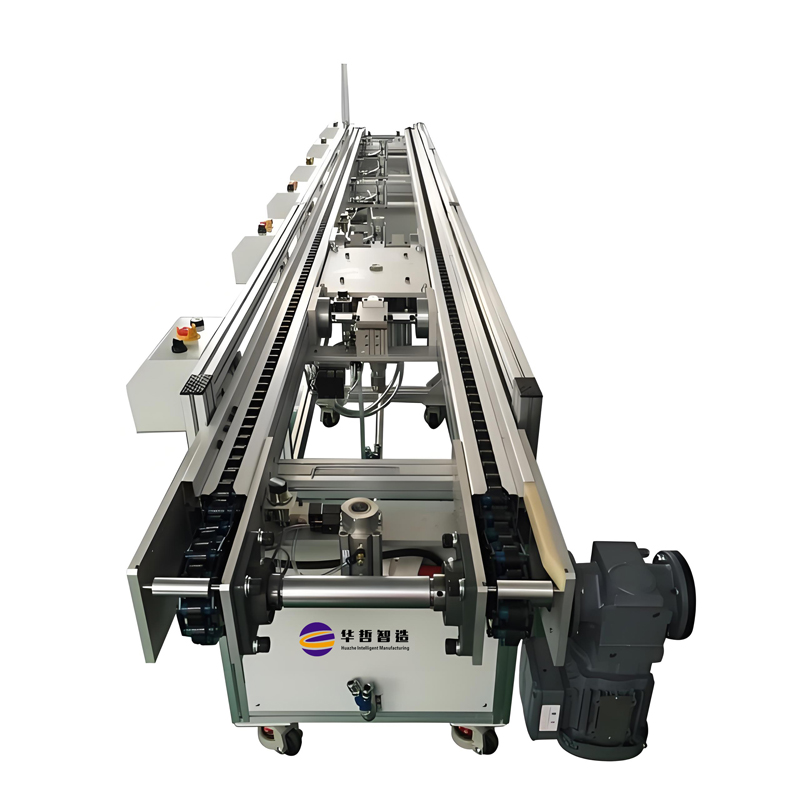

Linear Chain Conveyor System Assembly Line


Name:Linear Chain Conveyor System Assembly Line
Features:Good stability and durability during the conveying process, suitable for large-scale continuous production of products
Model:HZ-SC0111
Customization:Available
Inquiry

  • Linear Chain Conveyor System Assembly Line

Product Description

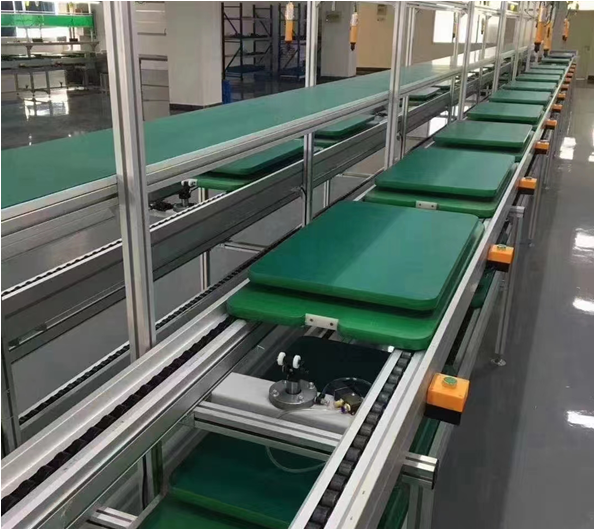

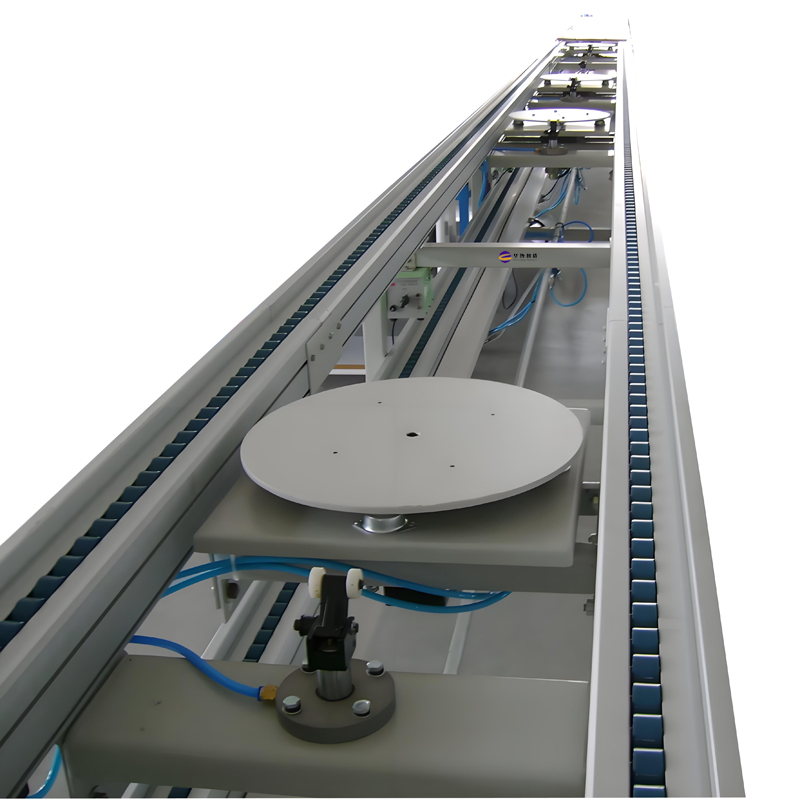

Linear Chain Conveyor System Assembly Line, also known as double speed chain or double speed chain assembly line, can also be called differential chain or differential chain assembly line. Double speed chain conveyor line is a widely used self flowing production conveyor line in assembly line equipment, which is deeply loved by enterprises due to its unique and efficient operation.



Using specially made and surface treated extruded aluminum alloy profiles as guide rails, the self flow conveying system has good stability and durability during the conveying process, suitable for large-scale continuous production of products.



The flexible and diverse design of the self flowing conveying system endows it with multifunctional characteristics. The most commonly used industries for the Double Speed Chain assembly line include: computer display production line, computer host production line, laptop assembly line, air conditioning production line, TV assembly line, microwave assembly line, printer assembly line, fax machine assembly line, audio amplifier production line, and engine assembly line.



technical parameter



Line width: 250-900mm, customer can choose line height: generally 750mm, range 500-1000mm.

Line length: The maximum length of a single segment drive is 30-40m, and the conveying speed is selected by the customer: 2-20 meters per minute.

Chain form: Chain and roller conveyor with equal speed - double pitch roller chain, chain and roller conveyor with differential speed - differential chain (two types: 2.5x and 3x)

Type of tooling board: steel plate, engineering plastic board, wooden board, etc.

Frame material: aluminum or carbon steel.

Live setting: A conductive wheel is installed inside the wire body, and a conductive bar is installed on the work board to achieve live transportation. The testing function has been completed.

Power supply: single-phase 220V or three-phase 380V 50Hz.
