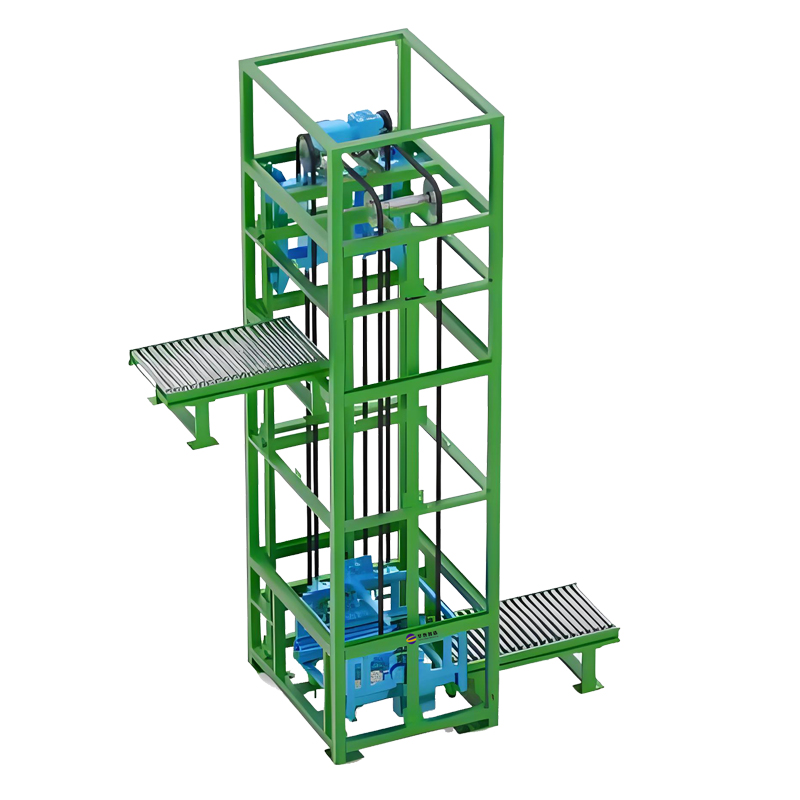

Vertical Lifting Conveyor System


Name:Vertical Lifting Conveyor System
Features:Vertical Transportation, Efficient Space Utilization, High Capacity, Smooth and Steady Movement, Flexible Customization, Safety Features, Versatile Applications
Model:HZ-VC01
Customization:Available
Inquiry

  • Vertical Lifting Conveyor System

Product Description

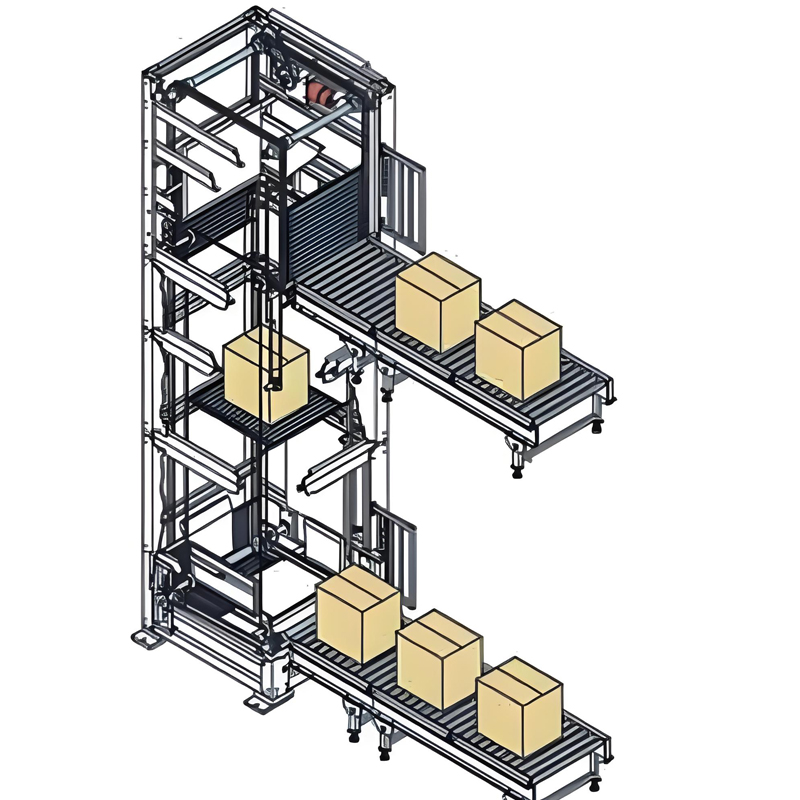

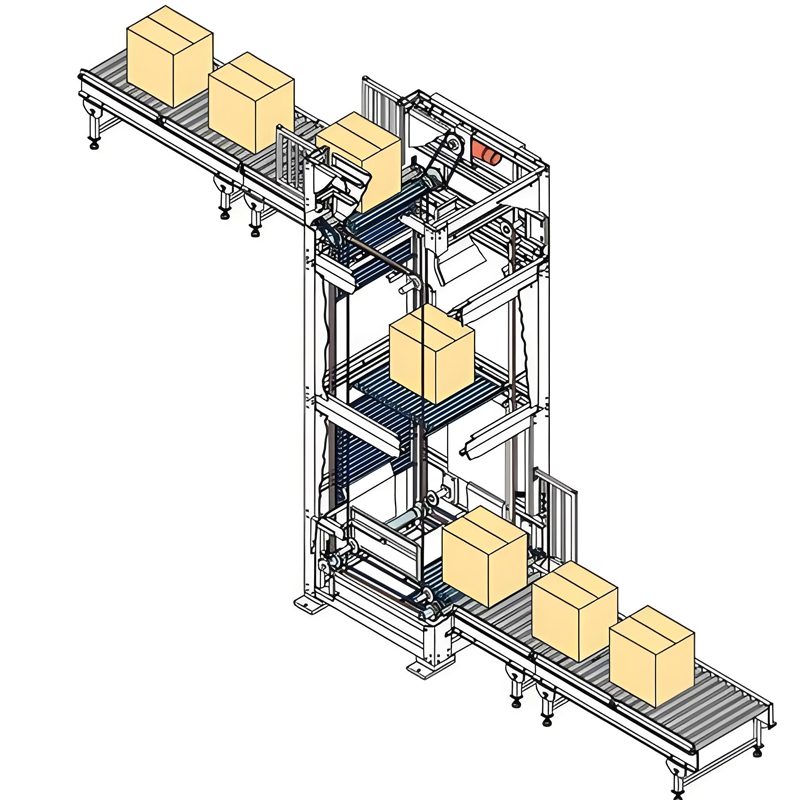

A vertical lifting conveyor system, also known as a vertical conveyance system or elevator conveyor, is a type of material handling equipment designed to transport goods vertically between different levels in a facility. It's particularly useful when there's a need to move products efficiently from ground level to mezzanines, upper floors, or between different production areas. Here's a description of its main components and operation:

  1. Loading Zone: At the bottom of the system, products are placed onto the conveyor, typically using a flat belt, roller bed, or a specialized gripper mechanism, depending on the type and weight of the items.

  2. Lifting Mechanism: The heart of the system, this mechanism lifts the conveyor belt or chain vertically. It can be powered by electric motors, hydraulics, or pneumatics, and may use a rack and pinion, cable lift, or a series of interconnected pulleys and drives.

  3. Enclosure: The conveyor is enclosed in a casing to ensure safety, prevent product damage, and minimize noise. Access doors or openings are provided for loading and unloading at each level.

  4. Control System: The system is equipped with a control panel that allows operators to program and operate the conveyor. This can include features like automatic sequencing, speed control, and safety interlocks.

  5. Unloading Zone: At the top of the system, the products are discharged from the conveyor into the designated area, such as a storage rack, assembly line, or another conveyor for horizontal transportation.

  6. Safety Features: To ensure workplace safety, the system is often equipped with emergency stop buttons, safety sensors, and guards to prevent accidental contact with moving parts.

Vertical lifting conveyors are versatile and can be customized to handle a wide range of products, from small items to large, heavy loads. They are commonly used in manufacturing plants, warehouses, and distribution centers to optimize floor space and streamline material flow.
